Neoprene Headcap Pro

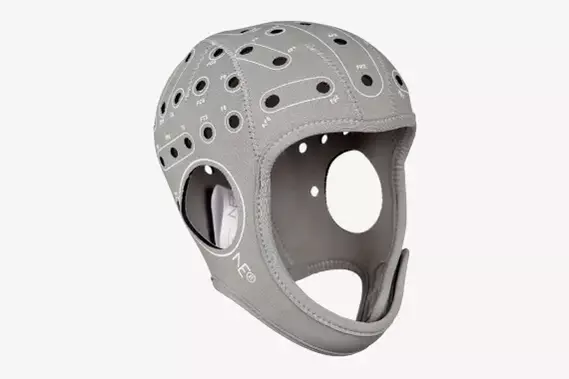

The Neuroelectrics® Neoprene Headcap Pro is the most complete solution for advanced users of multi-channel EEG and tES systems. It offers a positioning grid with 64 predefined and clearly annotated positions, reducing preparation time of EEG experiments that require high spatial resolution and tES interventions that require more precision. The 64-position grid is based on a subset of the international 10-10 EEG system. Extra positions can be created by using the Neoprene Punch Tool. The cap is available in four adult-sized models (XL, L, M, S).
Materials and sizes
· Material: Neoprene
· Sizes (cranial perimiter): S (49cm)*, M (54cm), L (57cm), XL (60cm)
· * Not available for NE051-P-NB2.XX.WH.RU:GV
Positioning grid
· Number of holes: 64
· Frontal-polar area: Fp1, Fpz, Fp2
· Anterior-frontal area: AF7, AF3, AFz, AF4, AF
· Frontal area: F7, F5, F3, F1, Fz, F2, F4, F6, F8
· Fronto-central area: FC5, FC3, FC1, FCz, FC2, FC4, FC6
· Fronto-temporal area: FT7, FT8
· Central area: C5, C3, C1, Cz, C2, C4, C6
· Temporal area: T7 (T3), T8 (T4)
· Temporo-parietal area: TP7, TP8
· Central-parietal area: CP5, CP3, CP1, CPz, CP2, CP4, CP6
· Parietal area: P9, P7, P5, P3, P1, Pz, P2, P4, P6, P8, P10
· Parieto-occipital area: PO7, PO3, POz, PO4, PO8
· Occipital area: O1, Oz, O2
· Inion: Iz
Reference Code and Model Compatibility
· NE051-P-NB1.(size).WH.MD:GV: Enobio 8 / 20 / 32, Starstim tES / 8
· NE051-P-NB2.(size).WH.RU:GV: Starstim 20 / 32
· Where (size) is: 0S, 0M, 0L or XL
Choose your system
The best in class wearable and wireless 32-channel system with tES stimulation and EEG monitoring capabilities
Wearable and wireless 20-channel system for targeted multi-channel tES stimulation and precise simultaneous EEG monitoring
Wearable wireless 8-channel system for targeted multi-channel tES stimulation and precise simultaneous EEG monitoring
End-to-end system for remotely supervised home-based multi-channel tES clinical investigations
